Bouncy Castle Blower Instruction Manual

Models: Proflow 1.5HP, Proflow Max 2HP, Proflow Max Ultra 3HP

Commercial Inflatables Blower | 3-Year Warranty

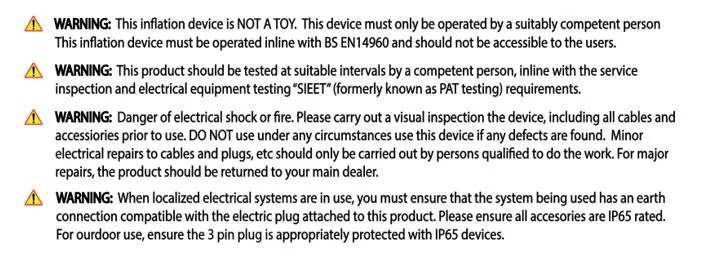

IMPORTANT SAFETY NOTICE

DO NOT operate this blower until you have read and understood these instructions in full.

Failure to follow safety and operational guidelines may result in injury, equipment damage, or invalidation of the warranty. Always read the inflatables user manual and check its pressure requirements before connecting this product.

Application & Intended Use

The Proflow Dynamics blower range is designed for continuous airflow applications including:

Commercial bouncy castles, Inflatables for hire businesses, Moonwalk domes, balloon houses, and air structures & Indoor and outdoor inflatable attractions

These blowers are not suitable for high-pressure applications or use without an inflatable connected and will easily help you achieve the required 1kpa pressure in most en14960 compliant inflatable sin the UK & EU. Always read the inflatables user manual and check its pressure requirements before connecting this product.

Operating Instructions

1. Pre-Use Inspection

- Check the blower for damage before each use.

- Confirm all screws and fasteners are secure.

- Ensure the blower is clean and free from obstructions.

2. Setup & Use

- Place the blower on a flat, stable surface.

- Attach the inflation tube securely using appropriate straps or clamps.

- Plug into a GFCI-protected outlet using a suitable outdoor-rated extension cable if required.

- Switch blower to the ON position.

3. Power Requirements

- UK Standard 240V mains

- Ensure the power supply exceeds the blower's power rating:

- Proflow 1.5HP: ~1100W

- Proflow Max 2HP: ~1500W

- Proflow Max Ultra 3HP: ~2000W

4. Backpressure Warning

- This blower requires constant back pressure.

- NEVER run the blower without it being attached to an inflatable.

- Doing so may cause irreparable motor damage.

Safety Guidance

- Keep children and untrained users away during operation.

- Do not use near standing water, flammable vapours, or dusty environments.

- Always unplug before cleaning or maintenance.

- Avoid any contact with moving parts while the blower is operating.

Maintenance Schedule

Task

Frequency

Check plug, cable and housing

Before every use

Clean safety screen and inlets

Weekly

Inspect for abnormal noises

Each session

Clean internal motor area (dry vacuum only)

Monthly

Troubleshooting Guide

- Blower does not turn on - Check plug, GFCI breaker, and power source. Reset if needed.

- Turns on then shuts off - Clear all inlet/outlet obstructions. Contact support if recurring.

- Excessive vibration - Inspect for bent fan blade or shaft. Clean any buildup.

- Scraping or rattling noises - Blower housing may be dented or warped. Contact support.

- Motor humming, no spin- Loose or faulty fan blade. Tighten motor shaft screw or contact us.

3-Year Manufacturer Warranty

Your Proflow Dynamics blower is backed by a 3-year limited warranty covering Manufacturing defects & Motor issues not caused by misuse. Everything else is covered by a 1 year warranty. If you believe your unit is faulty, contact your place of purchase or email info@proflowdynamics with your serial number and invoice.

Environment & Disposal

At the end of its service life, dispose of the blower in accordance with local WEEE regulations.

Do not dispose of with general waste.
